Industrial Aluminum Alloy Weighing Sensor 50kg 100kg 200kg Platform Scale

Name: Industrial Aluminum Alloy Weighing Sensor 50kg 100kg 200kg Platform Scale
Brand: ruijia
Price: 50 USD

Brand Name : ruijia

Model Number : 6540

Place of Origin : china

MOQ : 1pc

Price : USD 50/piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : Within 2-4 Weeks

Packaging Details : Standard export packaging

Mounting Type : Screw Mount

Description : Flat platform scale sensor

certificate : CE

Safe overload : 150% F.S.

Theory : Resistance Sensor

Contact Now

Introduction to products

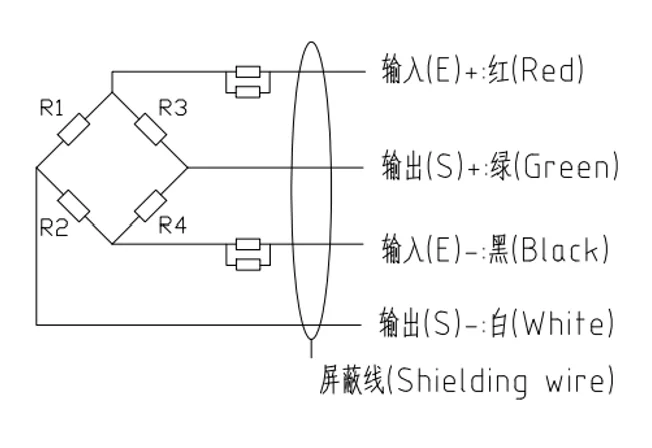

The Weighing Sensor operates on the basis of resistance strain. It functions by having the force being measured exerted onto the strain gauge, which is affixed to a hollow cylinder. This force is transmitted through an indenter that pulls, causing the gauge to compress axially and expand radially. Consequently, the axial resistance strain value diminishes while the radial value increases. An imbalance occurs in the Wheatstone bridge circuitry, leading to an output voltage at the bridge's angle, indicative of the force applied to the load cell.

Specification

Capacity(Kg):50/100/150/200/250/350/500	Temp. effect on zero(%F.S/10℃) : ±0.02
Sensitivity(mv/v): 2.0±0.2	Rated temprature range(℃ ) : -10～+60
Accuracy : ±0.02	Operating temperature range(℃ ) : -20~+80
Creep(%F.S/15min) :±0.02	Proposed Excitation voltage(V) : 5～12
Input resistance(Ω) : 406±20	Allowed Excitation voltage(V) : 18
Output resistance(Ω) : 350±5	Safe overload (%F.S) : 120
Insulation resistance(MΩ): ≥5000(100VDC)	Ultimate overload (%F.S) : 150
Zero Balance(%F.S) :±1	Protection:IP65
Temp. effect on span(%F.S/10℃): ±0.02	Material:Aluminum alloy

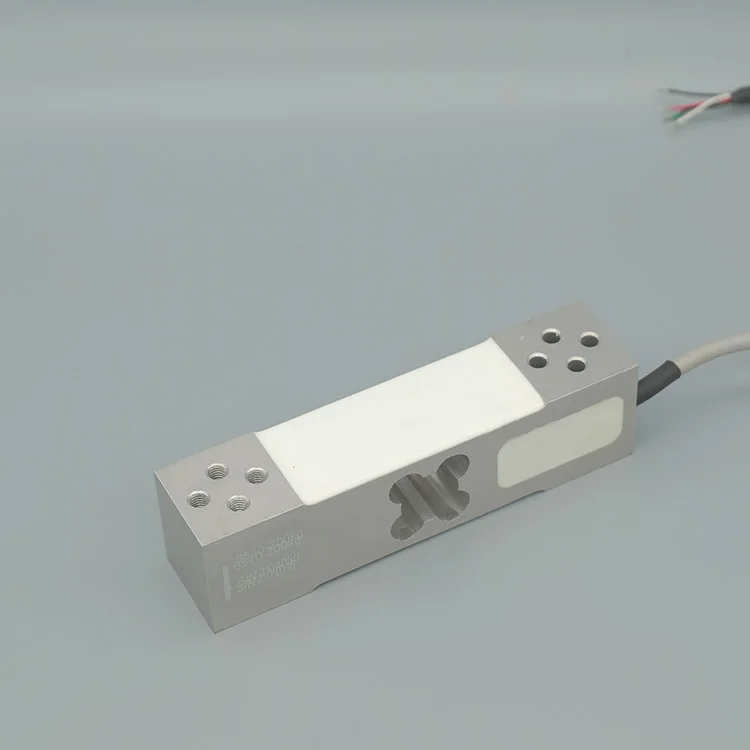

Product display

Industrial Aluminum Alloy Weighing Sensor 50kg 100kg 200kg Platform Scale
